This document defines the semantics for the key order handling paradigms of the FIX application layer related to the ExecutionReport(35=8) message. The semantics are mainly driven by only two FIX fields as follows:

  • ExecType(150) conveys the reason for the ExecutionReport(35=8) message to have been sent.
  • OrdStatus(39) conveys the current status of an order, i.e. after the event causing the message to be sent.

The various scenarios are grouped as follows and primarily reflect the different events that could occur during the lifetime of an order.

A – Order executions (aka Vanilla)

B – Order cancellations

C – Order modifications

D – Order sequencing and chaining

E – Order restatements

F – Order rejections

G – Order status information

H – Multi-day orders (GTC)

I – Non-resting orders (IOC, FOK)

J – Execution corrections and cancellations

K – Trading halts

L – Miscellaneous

Many of the events change the quantity fields of an order. The main fields shown in the scenarios are as follows:

  • OrderQty(38) – total executable quantity
  • CumQty(14) – executed quantity
  • LastQty(32) – quantity of last execution
  • LeavesQty(151) – quantity remaining for execution

An order can be in more than one state since the owner was last informed. The precedence rules governing the setting of OrdStatus(39) are defined in Chapter 2 Order State Precedences. The first set of scenarios set out in Chapter 3 General Order State Change Matrices are of general nature and are not limited to a specific environment or asset class. A much smaller set of scenarios is defined in Chapter 4 Order State Change Matrices for Exchanges. They mirror general scenarios but define a different workflow specific to exchanges and other electronic trading venues. The key difference is the reduced verbosity of workflows, i.e. less messages are used to convey the same amount of information on an order.

Order State Precedences

In an ExecutionReport(35=8) message OrdStatus(39) is used to convey the current state of the order. If an order simultaneously exists in more than one order state, the value with highest precedence is the value that is reported in OrdStatus(39). The order statuses are as follows (in highest to lowest precedence):

Precedence OrdStatus Description
11 Pending Cancel Order with a pending cancel request, used to confirm receipt of an OrderCancelRequest(35=F) message. DOES NOT INDICATE THAT THE ORDER HAS BEEN CANCELED.
10 Pending Replace Order with a pending replacement request, used to confirm receipt of an OrderCancelReplaceRequest(35=G) message. DOES NOT INDICATE THAT THE ORDER HAS BEEN REPLACED.
9 Done for Day Order not, or partially, filled; no further executions forthcoming for the trading day
8 Calculated Order has been completed for the day (either filled or done for day). Commission or currency settlement details have been calculated and reported in this execution message
7 Filled Order completely filled, no remaining quantity
6 Stopped Order has been stopped at the exchange. Used when guaranteeing or protecting a price and quantity
5 Suspended Order has been placed in suspended state at the request of the client.
4 Canceled Canceled order with or without executions
4 Expired Order has been canceled in broker’s system due to TimeInForce(59) instructions. The only exceptions are Fill or Kill and Immediate or Cancel orders that have Canceled as terminal order state.
3 Partially Filled Outstanding order with executions and remaining quantity
2 New Outstanding order with no executions
2 Rejected Order has been rejected by sell-side (broker, exchange, ECN). NOTE: An order can be rejected subsequent to order acknowledgment, i.e. an order can pass from New to Rejected status.
2 Pending New Order has been received by sell-side’s (broker, exchange, ECN) system but not yet accepted for execution. An execution message with this status will only be sent in response to a OrderStatusRequest(35=H) message.
1 Accepted for bidding Order has been received and is being evaluated for pricing. It is anticipated that this status will only be used with the BidType(394) = 2 (Disclosed style) List Order Trading model.

General Order State Change Matrices

The following matrices are included to clarify the sequence of messages and the status of orders involved in the submission and processing of new orders, executions, cancel requests, cancel/replace requests and order status requests. The matrices have been arranged in groups as follows.

Overview of Scenarios

A Vanilla

Ref Description
A.1.a Filled order
A.1.b Part-filled day order, done for day

B Cancel

Ref Description
B.1.a Cancel request issued for a zero-filled order
B.1.b Cancel request issued for a part-filled order – executions occur whilst cancel request is active
B.1.c Cancel request issued for an order that becomes filled before cancel request can be accepted
B.1.d Cancel request issued for an order that has not yet been acknowledged
B.1.e Cancel request issued for an order that has not yet been acknowledged – the acknowledgment and the cancel request ‘cross’
B.1.f Cancel request issued for an unknown order

C Cancel/Replace quantity changes

C.1 Replace to increase quantity

Ref Description
C.1.a Zero-filled order, cancel/replace request issued to increase order qty
C.1.b Part-filled order, followed by cancel/replace request to increase order qty, execution occurs whilst order is pending replace
C.1.c Filled order, followed by cancel/replace request to increase order quantity

C.2 Replace not for quantity change

Ref Description
C.2.a Cancel/replace request (not for quantity change) is rejected as a fill has occurred

C.3 Replace to decrease quantity

Ref Description
C.3.a Cancel/replace request sent whilst execution is being reported – the requested order qty exceeds the cum qty. Order is replaced then filled
C.3.b Cancel/replace request sent whilst execution is being reported – the requested order qty equals the cum qty – order qty is amended to cum qty
C.3.c Cancel/replace request sent whilst execution is being reported – the requested order qty is below cum qty – order qty is amended to cum qty

D Cancel/Replace sequencing and chaining

D.1 Sequencing

Ref Description
D.1.a One cancel/replace request is issued which is accepted – another one is issued which is also accepted
D.1.b One cancel/replace request is issued which is rejected before order becomes pending replace – then another one is issued which is accepted
D.1.c One cancel/replace request is issued which is rejected after it is in pending replace – then another one is issued which is accepted

D.2 Chaining

Ref Description
D.2.a One cancel/replace request is issued followed immediately by another – broker processes sequentially
D.2.b One cancel/replace request is issued followed immediately by another – broker processes pending replaces before replaces
D.2.c One cancel/replace request is issued followed immediately by another – both are rejected
D.2.d One cancel/replace request is issued followed immediately by another – broker rejects the second as order is pending replace

E Unsolicited/Reinstatement

Ref Description
E.1.a Telephoned order
E.1.b Unsolicited cancel of a part-filled order
E.1.c Unsolicited replacement of a part-filled order
E.1.d Unsolicited reduction of order quantity by sell side (e.g. for US ECNs to communicate Nasdaq SelectNet declines)
E.1.e Unsolicited cancel of ‘cancel if not best’ order
E.1.f Order is sent to exchange, held waiting for activation and then activated

F Order Reject

Ref Description
F.1.a Order rejected due to duplicate ClOrdID
F.1.b PossResend and duplicate ClOrdID
F.1.c Order rejected because the order has already been verbally submitted

G Status

Ref Description
G.1.a Order status request rejected for unknown order
G.1.b Transmitting a CMS-style “Nothing Done” in response to a status request
G.1.c Order sent, immediately followed by a status request. Subsequent status requests sent during life of order

H GT

Ref Description
H.1.a GTC order partially filled, restated (renewed) and partially filled the following day
H.1.b GTC order with partial fill, a 2:1 stock split then a partial fill and fill the following day
H.1.c GTC order partially filled, restated(renewed) and canceled the following day
H.1.d GTC order partially filled, restated(renewed) followed by replace request to increase quantity

I TimeInForce

Ref Description
I.1.a Fill or Kill order cannot be filled
I.1.b Immediate or Cancel order that cannot be immediately hit

J Execution Cancels/Corrects

Ref Description
J.1.a Filled order, followed by correction and cancellation of executions
J.1.b A canceled order followed by a busted execution and a new execution
J.1.c GTC order partially filled, restated (renewed) and partially filled the following day, with corrections of quantity on both executions
J.1.d Part-filled order Done for day followed by trade correction and bust

K Trading Halt

Ref Description
K.1.a Trading Halt – Reinstate
K.1.b Trading Halt – Cancel

L Miscellaneous

Ref Description
L.1.a Transmitting a guarantee of execution prior to execution (Stopped/Guarantee)
L.1.b Use of CashOrderQty

Scenarios for State Transitions

The table below shows which state transitions have been illustrated by the matrices in this section (marked with an asterisk). The row represents the current value of OrdStatus(39) and the column represents the next value as reported back to the buy-side via an execution report or order cancel reject message. Next to each OrdStatus(39) value is its precedence – this is used when the order exists in a number of states simultaneously to determine the value that should be reported back. Note that absence of a scenario should not necessarily be interpreted as meaning that the state transition is not allowed:

OrdStatus (precedence value) New (2) Partially

Filled (4)

 Filled (8) Done

For

Day (10)

 Pending Cancel (12) Pending

Replace (11)

 Canceled (5) Rejected (2) Stopped (7)
Pending New (2) ∗ ∗
New (2) ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
Partially Filled (4) ∗ ∗ ∗ ∗ ∗ ∗
Filled (8) ∗ ∗ ∗
Done for Day (10) ∗
Pending Cancel (12) ∗ ∗ ∗ ∗ ∗
Pending Replace (11) ∗ ∗ ∗ ∗ ∗
Canceled (5)
Rejected (2)
Stopped (7) ∗

A Vanilla

A.1.a – Filled order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by salesperson
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by trader/exchange
3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution of 2000
4 Execution(X) Trade Partially Filled 10000 3000 7000 1000 Execution of 1000
5 Execution(X) Trade Filled 10000 10000 0 7000 Execution of 7000
A.1.b – Part-filled day order, done for day
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution of 2000
4 Execution(X) Trade Partially Filled 10000 3000 7000 1000 Execution of 1000
5 Execution(X) Done for Day Done for Day 10000 3000 0 0 Assuming day order. See other examples which cover GT orders

B Cancel

B.1.a – Cancel request issued for a zero-filled order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message Sent

(ClOrdID, OrigClOrdID)

 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
2 Execution(X) New New 10000 0 10000 0
3 Cancel Request(Y,X) 10000
4 Cancel Reject (Y,X) New If rejected by salesperson
4 Execution (Y,X) Pending Cancel Pending Cancel 10000 0 10000 0 Acknowledge the cancel request
5 Cancel Reject (Y,X) New If rejected by trader/exchange
5 Execution (Y,X) Canceled Canceled 10000 0 0 0 Confirm that order has been canceled
B.1.b – Cancel request issued for a part-filled order – executions occur whilst cancel request is active
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000
4 Cancel Request(Y,X) 10000
4 Execution(X) Trade Partially Filled 10000 5000 5000 3000 Execution for 3000. This execution passes the cancel request on the connection
5 Cancel Reject (Y,X) Partially Filled If request is rejected
5 Execution (Y,X) Pending Cancel Pending Cancel 10000 5000 5000 0 ‘Pending cancel’ order status takes precedence over ‘partially filled’ order status
6 Execution(X) Trade Pending Cancel 10000 6000 4000 1000 Execution for 1000 whilst order is pending cancel – ‘pending cancel’ order status takes precedence over ‘partially filled’ order status.
7 Cancel Reject (Y,X) Partially Filled If request is rejected
7 Execution (Y,X) Canceled Canceled 10000 6000 0 0 ‘Canceled’ order status takes precedence over ‘partially filled’ order status
B.1.c – Cancel request issued for an order that becomes filled before cancel request can be accepted
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000
4 Cancel Request(Y,X) 10000
4 Execution(X) Trade Partially Filled 10000 5000 5000 3000 Execution for 3000. This execution passes the cancel request on the connection
5 Cancel Reject (Y,X) Partially Filled If request is rejected
5 Execution (Y,X) Pending Cancel Pending Cancel 10000 5000 5000 0 ‘Pending cancel’ order status takes precedence over ‘partially filled’ order status
6 Execution(X) Trade Pending Cancel 10000 10000 0 5000 Execution for 5000 whilst order is pending cancel. ‘Pending cancel’ order status takes precedence over ‘filled’ order status
7 Cancel Reject (Y,X) Filled Cancel request rejected – CxlRejectReason = 0 (too late to cancel)
B.1.d – Cancel request issued for an order that has not yet been acknowledged
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Cancel Request(Y,X) 10000 Order sender immediately wishes to cancel the order
3 Execution (Y,X) Pending Cancel Pending Cancel 10000 0 10000 0 OrigClOrd set to X even though X has not yet been ‘accepted’.
4 Execution(X) New New 10000 0 10000 0 Order accepted before cancel request is processed.
5 Execution (Y,X) Canceled Canceled 10000 0 0 0 Order canceled.
6 New Order(A) 5000
7 Cancel Request(B,A) 5000 Order sender immediately wishes to cancel the order
8 Execution (B,A) Pending Cancel Pending Cancel 5000 0 5000 0 OrigClOrd set to A even though A has not yet been ‘accepted’.
9 Execution (B,A) Canceled Canceled 5000 0 0 0 Order canceled before it is accepted. Note OrigClOrdID set to A even though A has not yet been accepted
B.1.e – Cancel request issued for an order that has not yet been acknowledged – the acknowledgment and the cancel request ‘cross’
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Cancel Request(Y,X) 10000 Order sender immediately wishes to cancel the order
2 Execution(X) New New 10000 0 10000 0 This message crosses the cancel request
3 Execution (Y,X) Pending Cancel Pending Cancel 10000 0 10000 0
4 Execution (Y,X) Canceled Canceled 10000 0 0 0 Order canceled.
B.1.f – Cancel request issued for an unknown order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 Cancel Request(Y,X) 10000
2 Cancel Reject (Y,X) Rejected Cancel request rejected with reject reason of “Unknown Order”, OrdStatus is “Rejected” and OrderID is “NONE”

NOTE: It is important to note that rejecting a cancel request for an unknown OrigClOrdID(41) does not cause the sell-side to consume the OrigClOrdID(41) used in the OrderCancelReplaceRequest(35=G).

C Cancel/Replace quantity changes

C.1 Replace to increase quantity

C.1.a – Zero-filled order, cancel/replace request issued to increase order qty
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Replace Request(Y,X) 11000 Request to increase order qty to 11000
4 Cancel Reject (Y,X) New If request is rejected by salesperson
4 Execution (Y,X) Pending Replace Pending Replace 10000 0 10000 0 Acknowledge the Replace request
5 Cancel Reject (Y,X) New If rejected by trader/exchange
5 Execution (Y,X) Replace New 11000 0 11000 0 Confirm order has been replaced
6 Execution(Y) Trade Partially Filled 11000 1000 10000 1000 Execution for 1000. Use Y as the new ClOrdID.
7 Execution(Y) Trade Partially Filled 11000 3000 8000 2000 Execution for 2000
C.1.b – Part-filled order, followed by cancel/replace request to increase order qty, execution occurs whilst order is pending replace
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 12000 Request increase in order quantity to 12000
5 Cancel Reject (Y,X) Partially Filled If request is rejected
5 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0 ‘Pending replace’ order status takes precedence over ‘partially filled’ order status
6 Execution(X) Trade Pending Replace 10000 1100 8900 100 Execution for 100 before cancel/replace request is dealt with
7 Cancel Reject (Y,X) Partially Filled If request is rejected
7 Execution (Y,X) Replace Partially Filled 12000 1100 10900 0 Confirm replace has been accepted
8 Execution(Y) Trade Filled 12000 12000 0 10900 Execution for 10900
C.1.c – Filled order, followed by cancel/replace request to increase order quantity
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Filled 10000 10000 0 10000 Execution for 10000
4 Replace Request(Y,X) 12000 Request increase in order quantity to 12000
5 Cancel Reject (Y,X) Filled If request is rejected
5 Execution (Y,X) Pending Replace Pending Replace 10000 10000 0 0 ‘Pending replace’ order status takes precedence over ‘partially filled’ order status
6 Cancel Reject (Y,X) Filled If request is rejected
6 Execution (Y,X) Replace Partially Filled 12000 10000 2000 0 . Confirm order has been replaced
7 Execution(Y) Trade Filled 12000 12000 0 2000 Execution for 2000

C.2 Replace not for quantity change

C.2.a – Cancel/replace request (not for quantity change) is rejected as a fill has occurred
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 10000 Assume in this scenario that client does not wish to increase qty (e.g. client wants to amend limit price)
4 Execution (X) Trade Filled 10000 10000 0 9000 Execution for 9000 – the replace request message and this execution report pass each other on the connection
5 Cancel Reject (Y,X) Filled CxlRejectReason = 0 (too late to cancel)

C.3 Replace to decrease quantity

C.3.a – Cancel/replace request sent whilst execution is being reported – the requested order qty exceeds the cum qty. Order is replaced then filled
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request a decrease order quantity to 8000 (leaving 7000 open)
4 Execution(X) Trade Partially Filled 10000 1500 8500 500 Execution for 500 sent. Replace request and this execution report pass each other on the connection
5 Cancel Reject (Y,X) Partially Filled If request is rejected by salesperson
5 Execution (Y,X) Pending Replace Pending Replace 10000 1500 8500 0 ‘Pending replace’ order status takes precedence over ‘partially filled’ order status
6 Execution(X) Trade Pending Replace 10000 1600 8400 100 Execution for 100 occurs before cancel/replace request is accepted
7 Cancel Reject (Y,X) Partially Filled If request is rejected by trader/exchange
7 Execution (Y,X) Replace Partially Filled 8000 1600 6400 0 Replace is accepted as requested order qty exceeds cum qty
8 Execution (Y) Trade Filled 8000 8000 0 6400 Execution for 6400.
C.3.b – Cancel/replace request sent whilst execution is being reported – the requested order qty equals the cum qty – order qty is amended to cum qty
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Replace Request(Y,X) 7000 Client wishes to amend order qty to 7000
3 Execution(X) Trade Partially Filled 10000 7000 3000 7000 Execution for 7000 – the replace message and this execution report pass each other on the connection
4 Execution (Y,X) Replace Filled 7000 7000 0 0 The replace request is interpreted as requiring the balance of the order to be canceled – the ‘filled’ order status takes precedence over ‘canceled’.
C.3.c – Cancel/replace request sent whilst execution is being reported – the requested order qty is below cum qty – order qty is amended to cum qty
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Replace Request(Y,X) 7000 Client wishes to amend order qty to 7000
3 Execution(X) Trade Partially Filled 10000 8000 2000 8000 Execution for 8000 – the replace message and this execution report pass each other on the connection
4 Execution (Y,X) Replace Filled 8000 8000 0 0 The replace request is interpreted as requiring the balance of the order to be canceled – the ‘filled’ order status takes precedence over ‘canceled’.

D Cancel/Replace sequencing and chaining

D.1 Sequencing

D.1.a – One cancel/replace request is issued which is accepted – another one is issued which is also accepted
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0 ‘Pending replace’ order status takes precedence over ‘partially filled’ order status
6 Execution(X) Trade Pending Replace 10000 1500 8500 500 Execution for 500
7 Execution (Y,X) Replace Partially Filled 8000 1500 6500 0
8 Execution (Y) Trade Partially Filled 8000 3500 4500 2000 Execution for 2000
9 Replace Request(Z,Y) 6000 Request decrease in order quantity to 6000, leaving 2500 open
10 Execution (Z,Y) Pending Replace Pending Replace 8000 3500 4500 0
11 Execution(Y) Trade Pending Replace 8000 4000 4000 500 Execution for 500
12 Execution (Z,Y) Replace Partially Filled 6000 4000 2000 0
13 Execution(Z) Trade Filled 6000 6000 0 2000 Execution for 2000
D.1.b – One cancel/replace request is issued which is rejected before order becomes pending replace – then another one is issued which is accepted
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Cancel Reject (Y,X) Partially Filled Request is rejected
6 Execution(X) Trade Partially Filled 10000 1500 8500 500 Execution for 500
7 Execution(X) Trade Partially Filled 10000 3500 6500 2000 Execution for 2000
8 Replace Request(Z,X) 6000 Request decrease in order quantity to 6000, leaving 2500 open. Note that OrigClOrdID = X , as this is the last non rejected ClOrdID
9 Execution (Z,X) Pending Replace Pending Replace 10000 3500 6500 0 Note that OrigClOrdID = X
10 Execution (Z,X) Replace Partially Filled 6000 3500 2500 0 Note that OrigClOrdID = X
11 Execution(Z) Trade Partially Filled 6000 5000 1000 1500 Execution for 1500
D.1.c – One cancel/replace request is issued which is rejected after it is in pending replace – then another one is issued which is accepted
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0
6 Execution(X) Trade Pending Replace 10000 1500 8500 500 Execution for 500. ‘Pending replace’ order status takes precedence over ‘partially filled’ order status
7 Cancel Reject (Y,X) Partially Filled Request is rejected (e.g. by trader/exchange)
8 Execution(X) Trade Partially Filled 10000 3500 6500 2000 Execution for 2000
9 Replace Request(Z,X) 6000 Request decrease in order quantity to 6000, leaving 2500 open. Note that OrigClOrdID = X as this is the last non rejected ClOrdID
10 Execution (Z,X) Pending Replace Pending Replace 10000 3500 6500 0
11 Cancel Reject (Z,X) Partially Filled If request is rejected (e.g. by trader/exchange)
11 Execution (Z,X) Replace Partially Filled 6000 3500 2500 0
12 Execution(Z) Trade Partially Filled 6000 5000 1000 1500 Execution for 1500

D.2 Chaining

D.2.a – One cancel/replace request is issued followed immediately by another – broker processes sequentially
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Replace Request(Z,Y) 7000 Request decrease in order quantity to 7000, leaving 6000 open. Note OrigClOrdID set to last non rejected ClOrdID i.e. Y (on an ‘optimistic’ basis)
6 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0 Broker processes Replace (Y,X) first
7 Execution (Y,X) Replace Partially Filled 8000 1000 7000 0 Broker processes Replace (Y,X) first
8 Execution (Z,Y) Pending Replace Pending Replace 8000 1000 7000 0 Broker then processes Replace (Z,Y). Note OrigClOrdID set to last accepted ClOrdID i.e. Y
9 Execution (Z,Y) Replace Partially Filled 7000 1000 6000 0 Broker then processes Replace (Z,Y)
10 Execution(Z) Trade Filled 7000 7000 0 6000 Execution for 6000
D.2.b – One cancel/replace request is issued followed immediately by another – broker processes pending replaces before replaces
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Replace Request(Z,Y) 7000 Request decrease in order quantity to 7000, leaving 6000 open. Note OrigClOrdID set to last non rejected ClOrdID i.e. Y
6 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0 Broker processes Replace (Y,X) first
7 Execution (Z,X) Pending Replace Pending Replace 8000 1000 7000 0 Broker then processes Replace (Z,Y). Note OrigClOrdID set to last accepted ClOrdID i.e. X
8 Execution (Y,X) Replace Pending Replace 8000 1000 7000 0 Broker processes Replace (Y,X) first Note OrigClOrdID set to last accepted ClOrdID i.e. X. OrdStatus of Pending Replace takes precedence over Partially Filled
9 Execution (Z,Y) Replace Partially Filled 7000 1000 6000 0 Broker then processes Replace (Z,Y) Note OrigClOrdID set to last accepted ClOrdID i.e. Y
10 Execution(Z) Trade Filled 7000 7000 0 6000 Execution for 6000
D.2.c – One cancel/replace request is issued followed immediately by another – both are rejected
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Replace Request(Z,Y) 7000 Request decrease in order quantity to 7000, leaving 6000 open. Note OrigCOrdID set to last non rejected ClOrdID i.e. Y
6 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0 Broker processes Replace (Y,X) first
7 Cancel Reject (Y,X) Partially Filled Broker rejects first replace request Note OrigClOrdID set to last accepted ClOrdID i.e. X
8 Execution (Z,X) Pending Replace Pending Replace 10000 1000 9000 0 Broker then processes Replace (Z,Y). Note OrigClOrdID set to last accepted ClOrdID i.e. X
9 Cancel Reject (Z,X) Partially Filled Broker then rejects second replace request Note OrigClOrdID set to last accepted ClOrdID i.e. X
10 Execution(X) Trade Partially Filled 10000 7000 3000 6000 Execution for 6000
D.2.d – One cancel/replace request is issued followed immediately by another – broker rejects the second as order is pending replace
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Replace Request(Y,X) 8000 Request decrease in order quantity to 8000, leaving 7000 open
5 Replace Request(Z,Y) 7000 Request decrease in order quantity to 7000, leaving 6000 open Note OrigCOrdID set to last non rejected ClOrdID i.e. Y
6 Execution (Y,X) Pending Replace Pending Replace 10000 1000 9000 0
7 Cancel Reject

(Z,X)

 Pending Replace Rejected because broker does not support processing of order cancel replace request whilst order is pending cancel. CxlRejReason = ‘Order already in pending cancel or pending replace status’ OrigClOrdID set to last accepted ClOrdID i.e. X
8 Execution (Y,X) Replace Partially Filled 8000 1000 7000 0
9 Execution (Y) Trade Partially Filled 8000 3000 5000 2000 Execution for 2000

This matrix illustrates the case where the broker/order receiver does not support multiple outstanding order cancel or order cancel/replace requests

E Unsolicited/Reinstatement

E.1.a – Telephoned order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 Order for 10000 phoned to broker
2 Execution New New 10000 0 0 0 Confirm that the broker has accepted the order – note that broker does not need to capture a ClOrdID
3 Execution Trade Partially Filled 10000 2000 8000 2000 Execution of 2000
4 Execution Trade Partially Filled 10000 3000 7000 1000 Execution of 1000
5 Execution Trade Filled 10000 10000 0 7000 Execution of 7000
E.1.b – Unsolicited cancel of a part-filled order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Broker verbally agrees to cancel order
5 Execution(X) Canceled Canceled 10000 1000 0 0 Broker signifies that order has been canceled – ExecRestatementReason = Verbal change

This scenario might occur if the buy-side has not implemented order cancel requests or alternatively there is an electronic communication problem at the point that the buy-side wishes to send a cancel request.

E.1.c – Unsolicited replacement of a part-filled order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Broker verbally agrees to increase order quantity to 11000
4 Execution(X) Restated New 11000 0 11000 0 Broker signifies that order has been replaced ExecRestatementReason = Verbal
5 Execution(X) Trade Partially Filled 11000 1000 10000 1000 Execution for 1000
6 Broker verbally agrees to increase order quantity to 12000
7 Execution(X) Restated Partially Filled 12000 1000 11000 0 Broker signifies that order has been replaced ExecRestatementReason = Verbal change

This scenario might occur if the buy-side has not implemented order cancel/replace requests or alternatively there is an electronic communication problem at the point that the buy-side wishes to send a cancel replace request

E.1.d – Unsolicited reduction of order quantity by sell side ( e.g. for US ECNs to communicate Nasdaq SelectNet declines)
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Restated New 9000 0 9000 0 ExecRestatementReason=”Partial Decline of OrderQty”
4 Execution(X) Trade Filled 9000 9000 0 9000
E.1.e – Unsolicited cancel of a ‘cancel if not best’ order
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty Price CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 56 ExecInst = Z ( Cancel if Not Best)
2 Execution(X) Rejected Rejected 10000 56 0 0 0 If order is rejected by sell-side (broker, exchange, ECN) (e.g. if the order book is at 56.1-57.1 prior to this order)
2 Execution(X) New New 10000 56 0 10000 0 Order accepted as order book was 55.9-56.9 prior to this order. Order book is now 56.0-56.9
3 Execution(X) Canceled Canceled 10000 56 0 0 0 Order book moves to 56.1-57.0. Order is no longer best bid/offer so is canceled with ExecRestatementReason =”Canceled, Not Best”
E.1.f – Order is sent to exchange, held waiting for activation and then activated
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 Entry of a stop (OrdType = 3), stop limit (OrdType = 4), At the Close (TimeInForce = 7), etc, order. E.g. an order that is held off the book waiting for activation subject to specified conditions.
2   Execution(X) Rejected Rejected 10 000 0 0 0 If order is rejected by trader / exchange
2 Execution(X) New New 10 000 0 10 000 0 Trader / exchange acknowledge receipt of order but does not enter it into the book at activation conditions are not met (WorkingIndicator = N).

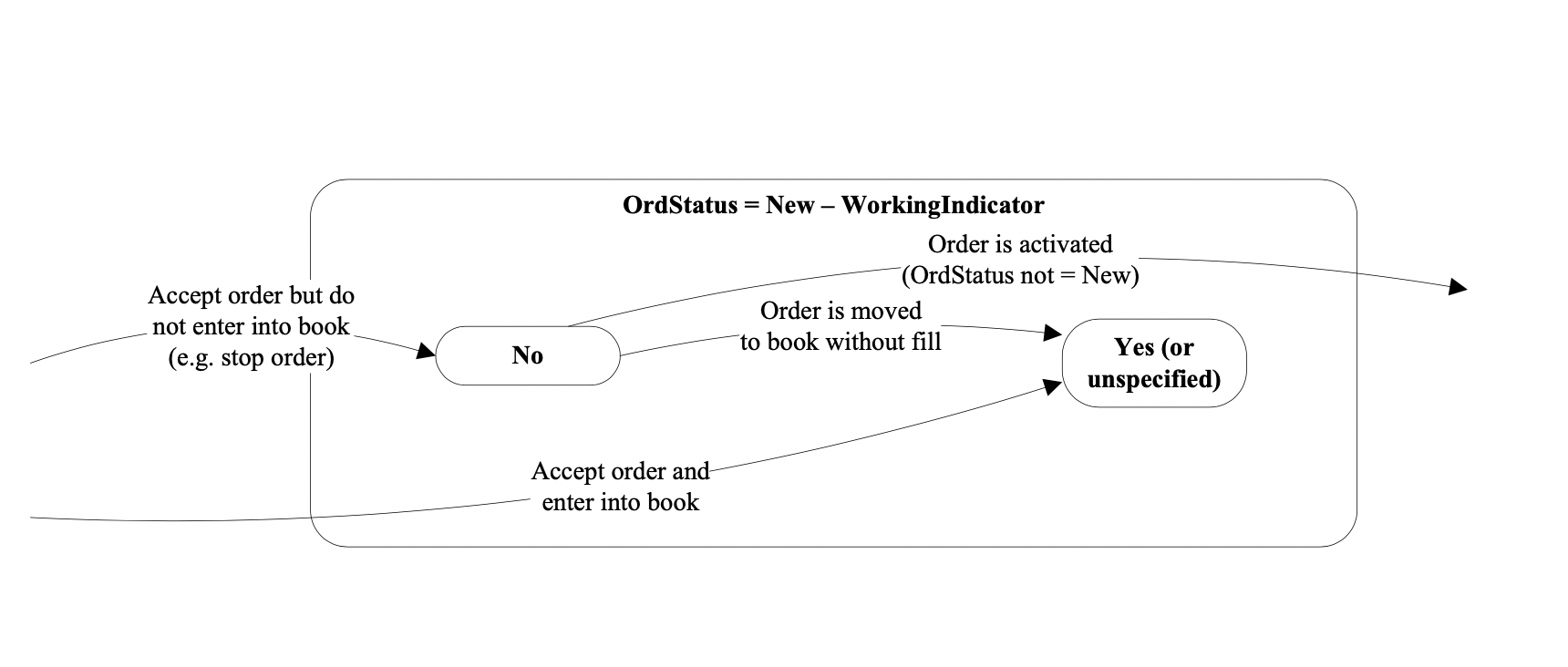

Note that if the conditions are met on entry, this WorkingIndicator is not sent.
3 Execution(X) Triggered by (Trading System) New 10 000 0 10 000 0 Activation conditions are reached. Trader / exchange acknowledge that order is put on book (WorkingIndicator = Y).

Note that this message can be implicit in situations where there is an immediate fill or partial fill (as any state other than New / Pending New means the order has been added to the book and is working).
4 Execution(X) Trade Partially Filled 10 000 2 000 8 000 2 000 Execution of 2000
5 Execution(X) Trade Filled 10 000 10 000 0 8 000 Execution of 8000

F Order Reject

F.1.a– Order rejected due to duplicate ClOrdID
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 New Order(X) 15000 Order submitted with the same order id.
5 Execution(X) Rejected Partially Filled 10000 1000 9000 0 OrdRejReason = duplicate order. Note combining a reject of the order for 15000 with a status on the first order for 10000 (which is partially filled)
F.1.b – PossResend and duplicate ClOrdID
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 New Order(X) 10000 PossResend=Y
4 Execution(X) Order Status New 10000 0 10000 Because order X has already been received, confirm back the current state of the order. Last Qty not required when ExecType = Order Status
5 New Order(X) 20000 PossResend=N or not set
6 Execution(X) Rejected New 10000 0 10000 OrdRejReason = duplicate order. Note combining a reject of the second order for 20000 with a status on the first order for 10000.
7 New Order(Y) 15000 PossResend=Y
8 Execution(Y) New New 15000 0 15000 0 Because order Y has not been received before, confirm back as a new order.
F.1.c – Order rejected because the order has already been verbally submitted
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 Order for 10000 sent electronically
2 Order passed verbally as there is communication problem and order does not arrive. The verbally passed order starts getting executed
3 Execution(X) Rejected Rejected 10000 0 0 0 Order finally arrives and is detected as a duplicate of a verbal order and is therefore rejected. OrdRejReason = duplicate of a verbal order

Note that the sell-side may employ a number of mechanisms to detect that the electronic order is potentially a duplicate of a verbally passed order, e.g. :

  • Checking the possdup flag on the order message header
  • Checking the incoming order details against other orders from the same client (e.g. side, quantity)
  • Looking at the transact time on the order as a guide to ‘staleness’

G Status

G.1.a – Order status request rejected for unknown order
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Status Request (Y)
5 Execution(Y) Order Status Rejected 0 0 0 OrdRejReason = unknown order

LastQty not required when ExecType=Order Status
G.1.b – Transmitting a CMS-style “Nothing Done” in response to a status request
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Status Request(X)
4 Execution(X) Order Status New 10000 0 10000 0 Text=”Nothing Done”
G.1.c – Order sent, immediately followed by a status request. Subsequent status requests sent during life of order
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Status Request (X)
3 Execution(X) Order Status Pending New 10000 0 10000 Sent in response to status request. LastQty not required when ExecType=Order Status
4 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
4 Execution(X) New New 10000 0 10000 0
5 Status Request (X)
6 Execution(X) Order Status New 10000 0 10000 Sent in response to status request.
7 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000
8 Status Request (X)
9 Execution(X) Order Status Partially Filled 10000 2000 8000 Sent in response to status request
10 Execution(X) Trade Filled 10000 10000 0 8000 Execution for 8000
11 Status Request (X)
12 Execution(X) Order Status Filled 10000 10000 0 Sent in response to status request
13 Replace Request(Y,X) 12000 Request to increase order qty
14 Execution (Y,X) Pending Replace Pending Replace 10000 10000 0 0
15 Execution (Y,X) Replace Partially Filled 12000 10000 2000 0
16 Status Request (X)
17 Execution
(Y,X)		 Order Status Partially Filled 12000 10000 2000 Sent in response to status request. Note reference to X to allow tie back of execution report to status request
18 Status Request (Y)
19 Execution(Y) Order Status Partially Filled 12000 10000 2000 Sent in response to status request

H GT

H.1.a – GTC order partially filled, restated (renewed) and partially filled the following day
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Day

OrderQty

 Day

CumQty

 Comment
Day 1,1 New Order(X) 10000
Day 1,2 Execution(X) New New 10000 0 10000 0
Day 1,3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000
Day 1,4 Execution(X) Done for Day Done for Day 10000 2000 8000 0 Optional at end of trading day
Day 2,1 Execution(X) Restated Partially Filled 10000 2000 8000 0 8000 0 ExecRestatementReason = GTC renewal/restatement (no change) – optionally sent the following morning
Day 2,2 Execution(X) Trade Partially Filled 10000 3000 7000 1000 8000 1000 Execution for 1000
H.1.b – GTC order with partial fill, a 2:1 stock split then a partial fill and fill the following day
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Day

OrderQty

 Day

CumQty

 Comment
Day 1,1 New Order(X) 10000
Day 1,2 Execution(X) New New 10000 0 10000 0
Day 1,3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000 @ 50
Day 1,4 Execution(X) Done for Day Done for Day 10000 2000 8000 0 Optional at end of trading day
Day 2,1 Execution(X) Restated Partially Filled 20000 4000 16000 0 16000 0 Sent the following morning after the split ExecRestatementReason = GTC corporate action. AvgPx=25, DayAvgPx=0
Day 2,2 Execution(X) Trade Partially Filled 20000 9000 11000 5000 16000 5000 Execution for 5000
Day 2,3 Execution(X) Trade Filled 20000 20000 0 11000 16000 16000 Execution for 11000
H.1.c – GTC order partially filled, restated(renewed) and canceled the following day
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Day

OrderQty

 Day

CumQty

 Comment
Day 1,1 New Order(X) 10000
Day 1,2 Execution(X) New New 10000 0 10000 0
Day 1,3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000
Day 1,4 Execution(X) Done for Day Done for Day 10000 2000 8000 0 Optional at end of trading day
Day 2,1 Execution(X) Restated Partially Filled 10000 2000 8000 0 8000 0 ExecRestatementReason = GTC renewal/restatement (no change) – optionally sent the following morning
Day 2,2 Cancel Request (Y,X) 10000
Day 2,3 Cancel Reject (Y,X) Partially Filled If rejected by salesperson
Day 2,3 Execution (Y,X) Pending Cancel Pending Cancel 10000 2000 8000 0 8000 0
Day 2,4 Cancel Reject (Y,X) Partially Filled If rejected by trader/exchange
Day 2,4 Execution (Y,X) Canceled Canceled 10000 2000 0 0 8000 0
H.1.d – GTC order partially filled, restated(renewed) followed by replace request to increase quantity
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Day

OrderQty

 Day

CumQty

 Comment
Day 1,1 New Order(X) 10000
Day 1,2 Execution(X) New New 10000 0 10000 0
Day 1,3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution for 2000
Day 1,4 Execution(X) Done for Day Done for Day 10000 2000 8000 0 Optional at end of trading day
Day 2,1 Execution(X) Restated Partially Filled 10000 2000 8000 0 8000 0 ExecRestatementReason = GTC renewal/restatement (no change) – optionally sent the following morning
Day 2,2 Replace Request(Y,X) 15000 Increasing qty
Day 2,3 Cancel Reject (Y,X) Partially Filled If rejected by salesperson
Day 2,3 Execution (Y,X) Pending Replace Pending Replace 10000 2000 8000 0 8000 0
Day 2,4 Execution (X) Trade Pending Replace 10000 3000 7000 1000 8000 1000 Execution for 1000
Day 2,5 Cancel Reject (Y,X) Partially Filled If rejected by trader/exchange
Day 2,5 Execution (Y,X) Replace Partially Filled 15000 3000 12000 0 13000 1000

I TimeInForce

I.1.a – Fill or Kill order cannot be filled
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 Order is FOK
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Canceled Canceled 10000 0 0 0 If order cannot be immediately filled
I.1.b – Immediate or Cancel order that cannot be immediately hit
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 Order is IOC
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Execution(X) Canceled Canceled 10000 1000 0 0 If order cannot be immediately hit

J Execution Cancels/Corrects

J.1.a – Filled order, followed by correction and cancellation of executions
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty AvgPx LastQty LastPx ExecId

(Exec
RefID)

 Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 A If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0 0 B
3 Execution(X) Trade Partially Filled 10000 1000 9000 100 1000 100 C Execution for 1000 @ 100
4 Execution(X) Trade Filled 10000 10000 0 109 9000 110 D Execution for 9000 @ 110
5 Execution(X) Trade Cancel Partially Filled 10000 9000 1000 110 0 0 E (C) Cancel execution for 1000.
6 Execution(X) Trade Correct Partially Filled 10000 9000 1000 100 9000 100 F (D) Correct price on execution for 9000 to 100.
7 Execution(X) Trade Filled 10000 10000 0 102 1000 120 G Execution for 1000 @ 120
8 Execution(X) Trade Correct Filled 10000 10000 0 120 9000 120 H (F) Correct price on execution for 9000 to 120
9 Replace Request (Y,X) 12000 Request to increase order qty
10 Execution (Y,X) Pending Replace Pending Replace 10000 10000 0 120 0 0 I
11 Execution (Y,X) Replace Partially Filled 12000 10000 2000 120 0 0 J
12 Execution(Y) Trade Correct Partially Filled 12000 10500 1500 120 9500 120 K (H) Correct execution of 9000 @ 120 to 9500 @ 120
J.1.b – A canceled order followed by a busted execution and a new execution
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty ExecID

(Exec
RefID)

 Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0 A
3 Execution(X) Trade Partially Filled 10000 5000 5000 5000 B LastPx=50
4 Cancel Request(Y,X) 10000
5 Execution
(Y,X)		 Pending Cancel Pending Cancel 10000 5000 5000 0 C
6 Execution (Y,X) Canceled Canceled 10000 5000 0 0 D
7 Execution(X) Trade Cancel Canceled 10000 0 0 0 E(B) Cancel of the execution. ‘Canceled’ order status takes precedence over ‘New’
8 Execution(X) Trade Canceled 10000 4000 0 4000 F Fill for 4000. LastPx=51
J.1.c – GTC order partially filled, restated (renewed) and partially filled the following day, with corrections of quantity on both executions
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Day

OrderQty

 Day

CumQty

 ExecID

(Exec
RefID)

 Comment
Day 1,1 New Order(X) 10000
Day 1,2 Execution(X) New New 10000 0 10000 0 A
Day 1,3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 B Execution for 2000
Day 1,4 Execution(X) Done for Day Done for Day 10000 2000 8000 0 C Optional at end of trading day
Day 2,1 Execution(X) Restated Partially Filled 10000 2000 8000 0 8000 0 D ExecRestatementReason = GTC renewal/restatement (no change) – optionally sent the following morning
Day 2,2 Execution(X) Trade Partially Filled 10000 3000 7000 1000 8000 1000 E Execution for 1000
Day 2,3 Execution(X) Trade Correct Partially Filled 10000 2500 7500 1500 8500 1000 F (B) Correct quantity on previous day’s execution from 2000 to 1500
Day 2,4 Execution(X) Trade Correct Partially Filled 10000 2000 8000 500 8500 500 G (E) Correct quantity on today’s execution from 1000 to 500
J.1.d – Part-filled order Done for day followed by trade correction and bust
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty ExecID

(Exec
RefID)

 Comment
1 New Order(X) 10000
2 Execution(X) New New 10000 0 10000 0 A
3 Execution(X) Trade Partially Filled 10000 5000 5000 5000 B LastPx=50
4 Execution(X) Done for Day Done for day 10000 5000 0 0 C Done for day message sent
5 Execution(X) Trade Correct Done for day 10000 4000 0 4000 D (B) Correct quantity on execution to 4000. LastPx = 50
6 Execution(X) Trade Cancel Done for day 10000 0 0 0 E (D) Done for Day OrdStatus takes precedence

K Trading Halt

K.1.a – Trading Halt – Reinstate
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 ExecInst set to reinstate on trading halt
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Trading halt established
4 Trading halt lifted
5 Execution(X) Trade Filled 10000 10000 0 10000
K.1.b – Trading Halt – Cancel
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 ExecInst set to cancel on trading halt
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Trading halt established
4 Execution Canceled Canceled 10000 0 0 0 Order canceled due to trading halt. ExecRestatementReason = Canceled due to trading halt

L Miscellaneous

L.1.a– Transmitting a guarantee of execution prior to execution
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty LastPx Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Stopped Stopped 10000 0 10000 1000 50.10 Text=”You are guaranteed to buy 1000 at 50.10”; This is similar to the concept of a ‘protected’ trade. Not actually reporting a trade, so ExecType = Stopped
4 Execution(X) Trade Stopped 10000 1000 9000 1000 50.00 Executed price is better than guaranteed
L.1.b- Use of CashOrderQty
Time Message
Received(ClOrdID, OrigClOrdID)		 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty Cash

OrderQty

 CumQty LeavesQty LastQty LastPx Comment
1 New Order(X) 10000 Currency=EUR. A buy order to invest 10,000 EUR.
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected
2 Execution(X) New New 500 10000 0 500 0 Assuming product has a unit price of 20 EUR at time of order receipt
3 Execution(X) Trade Partially Filled 500 10000 200 300 200 20.1 Execution of 200 @20.1 (i.e. does not have to be at the ‘conversion price’ of 20)
4 Execution(X) Trade Filled 500 10000 500 0 300 20.2 Execution of 300 @20.2 (i.e. does not have to be at the ‘conversion price’ of 20)

Order State Change Matrices for Exchanges

This section addresses issues with order state changes in an exchanges or marketplace environment. These supplement the general Order State Change Matrices above and are documented as specific to exchanges and marketplaces. The titles and references have been chosen in accordance with the general matrices. These specific cases supersede the general ones when implementing the FIX Protocol for exchanges and centralized marketplaces. General Order State Changes matrices that are not mentioned in this section apply to the exchange and centralized marketplace environment. Please also refer to the general Order State Change Matrices defined in Chapter 3 General Order State Change Matrices.

Overview of Scenarios

A Vanilla

Ref Description
A.1.a Filled order after order rests on book
A.1.b Part-filled day order after order rests on book, done for day
A.1.c Order filled upon hitting the book
A.1.d Order partially filled upon hitting the book

I TimeInForce

Ref Description
I.1.a Fill or Kill order cannot be filled
I.1.b Immediate or Cancel order that cannot be immediately hit

Applicability of general scenarios depicted in Chapter 3 General Order State Change Matrices for electronic exchange/ECN environments:

  • Filled and Canceled are considered to be terminal states of an order, i.e. a state transition from Filled or Canceled to Partially Filled or Pending Replace should be avoided.
  • Pending order states requiring additional messages should be avoided in the interest of performance.

The ExecType is used to identify the purpose of the execution report message. The value of ExecType will typically be New to convey the fact that a new order has been received and processed. However, the value of OrdStatus in this initial response may not necessarily be New as the order might have been executed immediately. The initial value of OrdStatus can therefore also be Partially Filled or Filled. It can even be Canceled if the order has time in force values such as Fill or Kill and Immediate or Cancel and the order could not be executed immediately (and in its entirety in case of Fill or Kill).

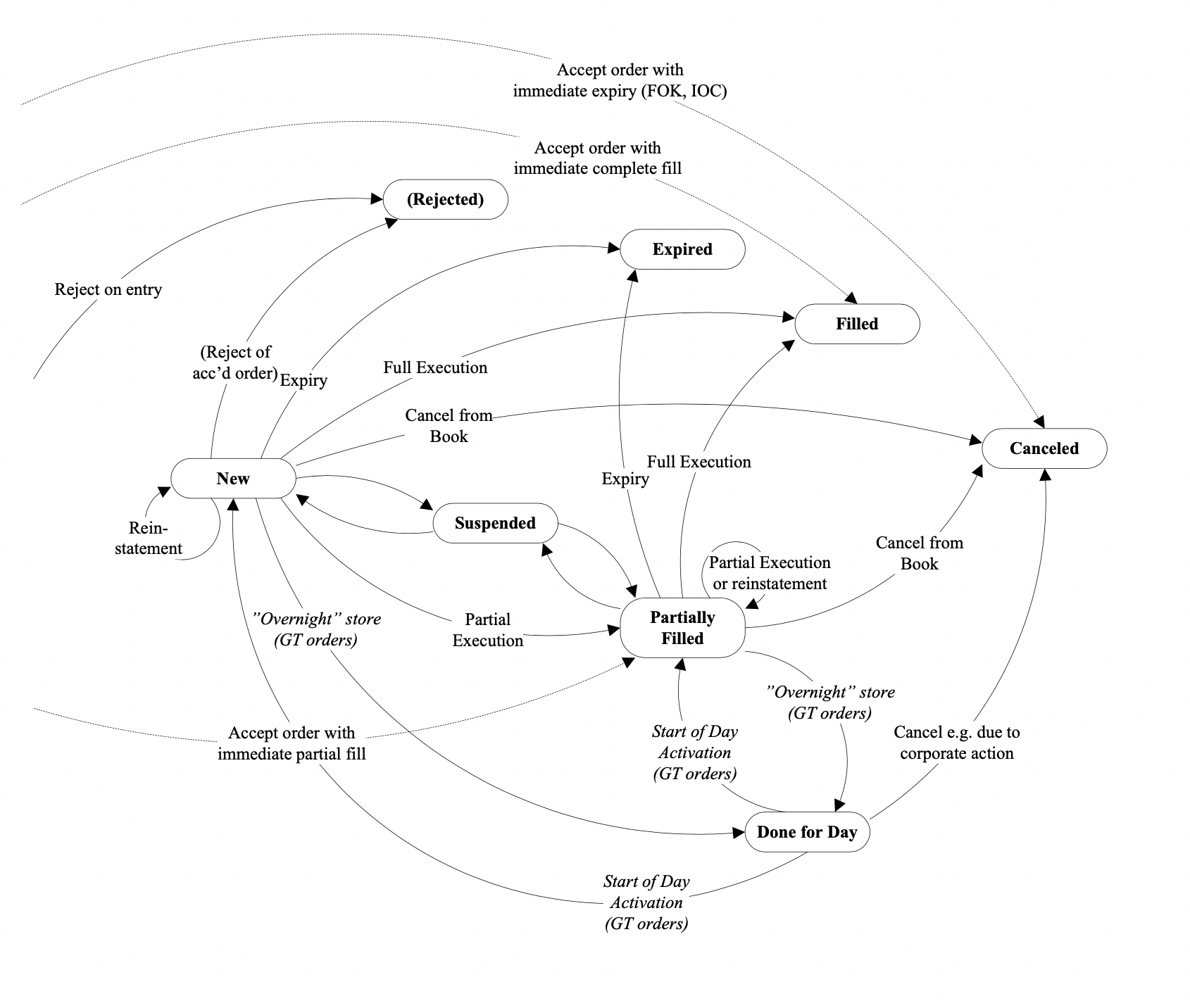

The following diagram illustrates the complete set of state transitions recommended for electronic exchange/ECN environments. The dotted lines lead to initial order states other than New and apply to cases where an order does not simply rest on the order book after having been accepted by the exchange/ECN. It is a possibility aimed at increasing performance by reducing the overall number of “Execution Report” messages that need to be provided and processed. Message flows with explicit messages to convey the order state New are equally possible.

Order State Change Diagrams for Exchanges

Scenarios for State Transitions

A Vanilla

A.1.a – Filled order after order rests on book
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by salesperson
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by trader/exchange
3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution of 2000
4 Execution(X) Trade Partially Filled 10000 3000 7000 1000 Execution of 1000
5 Execution(X) Trade Filled 10000 10000 0 7000 Execution of 7000
A.1.b – Part-filled day order after order rests on book, done for day
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by the exchange
2 Execution(X) New New 10000 0 10000 0
3 Execution(X) Trade Partially Filled 10000 2000 8000 2000 Execution of 2000
4 Execution(X) Trade Partially Filled 10000 3000 7000 1000 Execution of 1000
5 Execution(X) Done for Day Done for Day 10000 3000 0 0 Assuming day order. See other examples which cover GT orders
A.1.c – Order filled upon hitting the book
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by the exchange
2 Execution(X) Trade Filled 10000 10000 0 10000 Immediate execution of 10000
A.1.d – Order partially filled upon hitting the book
Time Message Received

(ClOrdID, OrigClOrdID)

 Message
Sent(ClOrdID, OrigClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by the exchange
2 Execution(X) Trade Partially Filled 10000 7000 3000 7000 Immediate execution of 7000

I TimeInForce

I.1.a – Fill or Kill order that cannot be filled
Time Message Received

(ClOrdID)

 Message
Sent(ClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 Order is FOK
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker,the exchange, ECN)
2 Execution(X) New New 10000 0 10000 0 If messages are not bundled
3 Execution(X) Canceled Canceled 10000 0 0 0 If order cannot be immediately filled
4 New Order(Y) 10000 Order is FOK
5 Execution(Y) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
6 Execution(Y) Canceled Canceled 10000 0 0 0 If message bundling is being used and order cannot be immediately filled
I.1.b – Immediate or Cancel order that cannot immediately be hit completely
Time Message Received

(ClOrdID)

 Message
Sent(ClOrdID)		 ExecType OrdStatus OrderQty CumQty LeavesQty LastQty Comment
1 New Order(X) 10000 Order is IOC
2 Execution(X) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
2 Execution(X) New New 10000 0 10000 0 If messages are not bundled
3 Execution(X) Trade Partially Filled 10000 1000 9000 1000 Execution for 1000
4 Execution(X) Canceled Canceled 10000 1000 0 0 If order cannot be immediately hit completely
5 New Order(Y) 10000 Order is IOC
6 Execution(Y) Rejected Rejected 10000 0 0 0 If order is rejected by sell-side (broker, exchange, ECN)
6 Execution(Y) Trade Canceled 10000 1000 9000 1000 If message bundling is being used and execution of 1000 occurs immediately upon hitting the book
